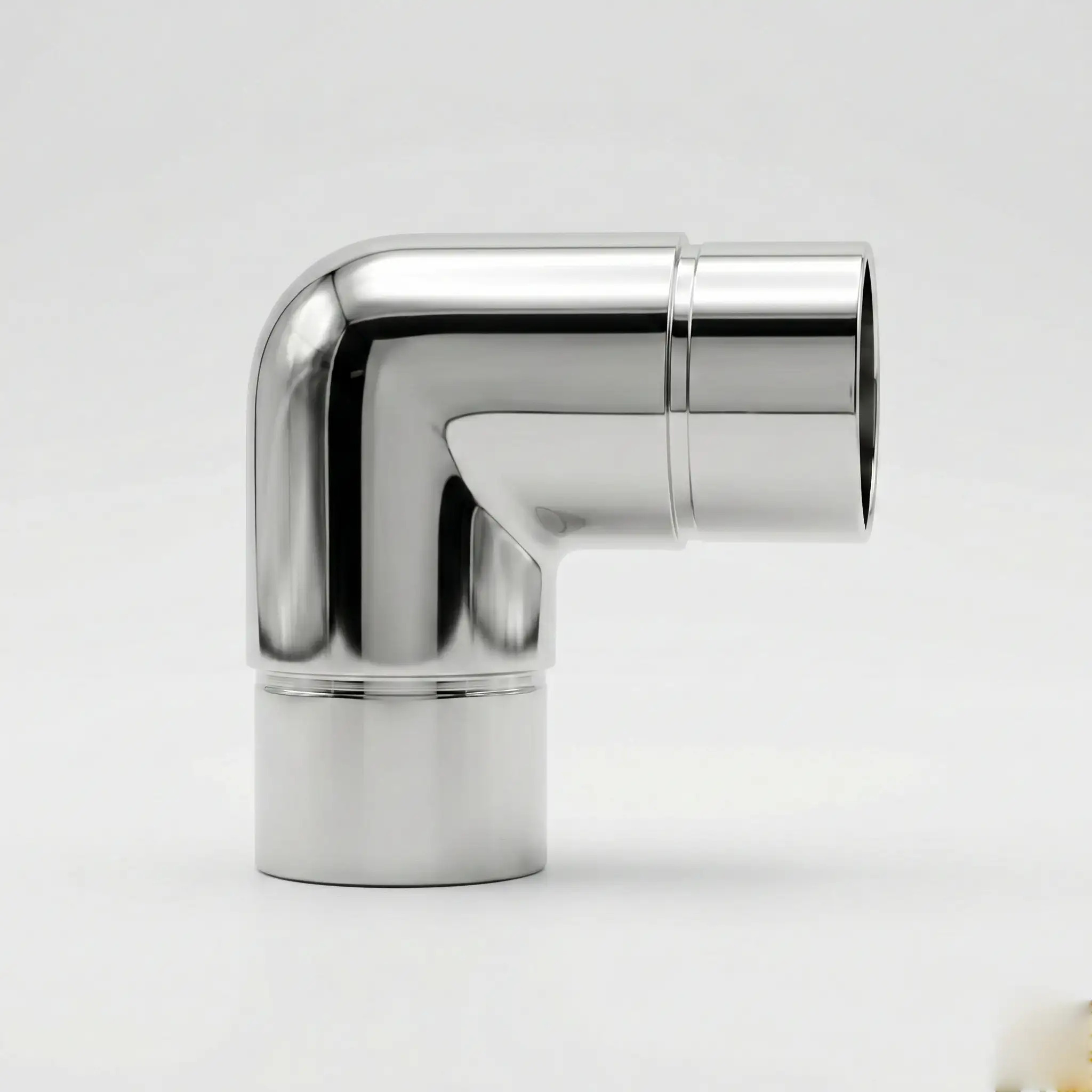

Bend – 90deg fixed bend – Slotted Round – 25.4mm

The 25.4mm Round Slotted 90° Fixed Bend is the matching corner fitting for 25.4mm round slotted top rail systems. Designed to slide onto the open ends of both tubes at a 90° corner, it creates a clean, gap-free transition with no fixings required — one fitting, two tube ends, one seamless corner.

The 25.4mm profile suits more refined, lightweight slotted rail systems where a minimal, architectural top rail is preferred. This fitting maintains the slim, low-profile aesthetic of the 25.4mm tube throughout the corner, ensuring the overall design remains consistent from straight run to corner without any bulky hardware interrupting the line.

As with the larger 50.8mm version, the glass slot terminates at the fitting, creating a defined end point for glass panels on either side of the corner.

Specifications

• Type: 90° Fixed Bend
• Profile: Round Slotted
• Tube Diameter: 25.4mm
• Fitting Method: Slide-on — no bolts or adhesive required
• Units Per Pack: 1 fitting (fits both tube ends at corner)
• Compatible With: 25.4mm round slotted tube
• Finish Options: Brushed Satin | Mirror Polish
• Grade Options: 304 Stainless Steel | 316 Marine Grade Stainless Steel
• Material: Stainless Steel
• Category: Components & Fittings – Slotted Fittings

Which Grade Should I Choose?

Grade 304 is strong and reliable, suited to internal applications and external use in non-coastal, non-corrosive environments — ideal for inland areas such as Johannesburg, Pretoria, and most non-coastal suburbs.

Grade 316 (Marine Grade) offers superior corrosion resistance and is the essential choice for coastal properties, poolside installations, and any environment exposed to salt air, moisture, or chemicals. If you are in Cape Town, the Winelands, Durban, or any coastal area, Grade 316 is strongly recommended.

Installation Note

Always match your fitting grade and finish to your slotted tubing for a consistent, professional result. When fitting against glass panels, use neutral-cure silicone or clear rubber gaskets — avoid acetoxy (acid-cure) silicone as it can stain stainless steel.
