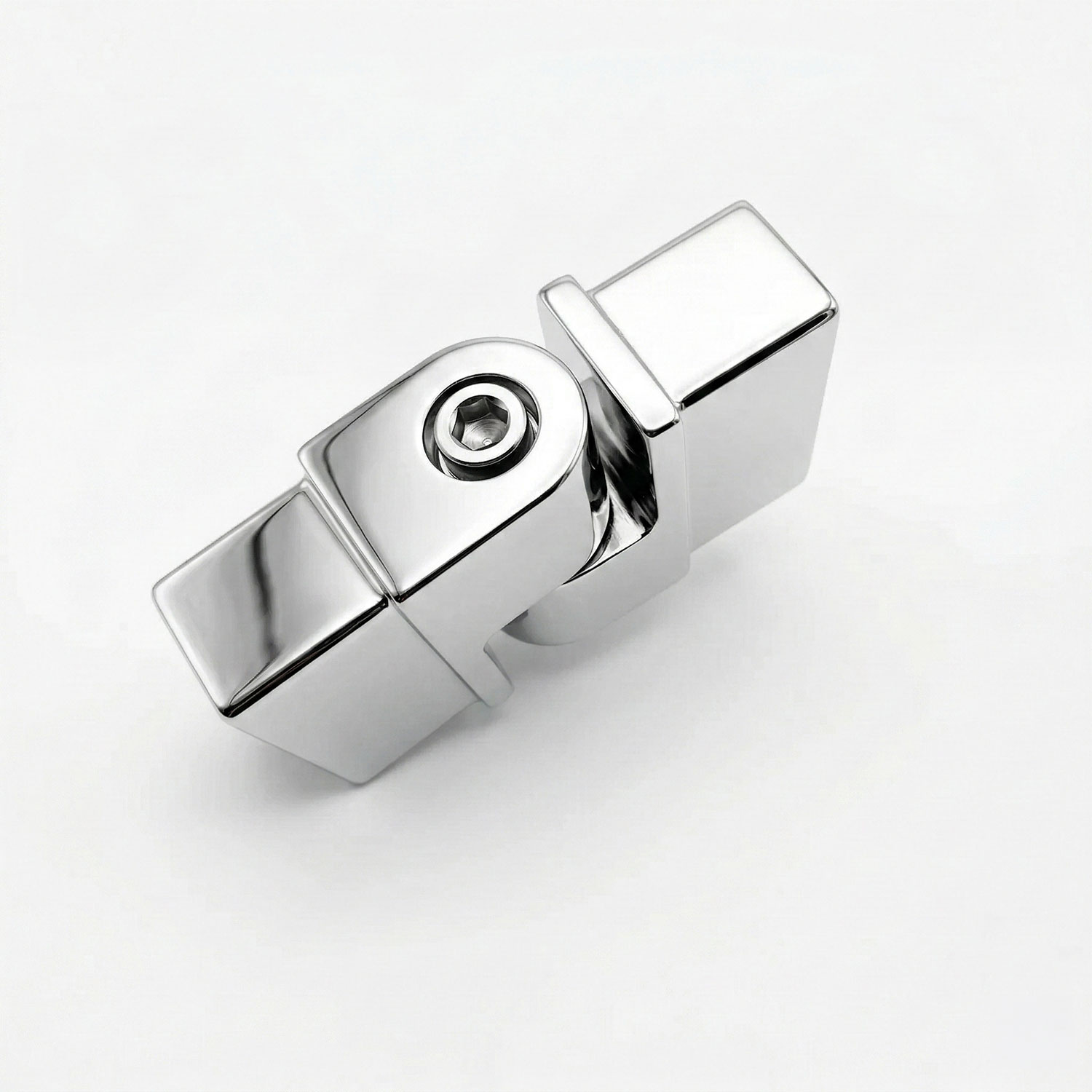

Bend – Adjustable Bend Horisontal – Slotted Rectangular – 50 x 25mm

The 50 x 25mm Rectangular Slotted Adjustable Bend Horizontal is the corner fitting for rectangular slotted rail systems where the corner angle is not a standard 90°. Its hinge mechanism pivots on a horizontal axis, adjusting freely from left to right to match whatever angle your deck, balcony, or terrace dictates — then holding that angle securely as the tube ends are inserted on both sides.

The wide, flat-top profile of the rectangular fitting means the top surface of the rail remains continuous and level through the corner, which is both aesthetically important and practically useful as a handgrip surface. This fitting is particularly well suited to larger deck installations and commercial terraces where non-standard corner angles are common and a confident, bold rail profile is desired throughout.

The glass slot terminates at the fitting on both sides, providing a clean, defined end for glass panels in each direction.

Specifications

• Type: Adjustable Bend — Horizontal
• Adjustment Axis: Horizontal (pivots left to right on a flat plane)
• Adjustment Range: 0° to approximately 180°
• Profile: Rectangular Slotted
• Tube Dimensions: 50 x 25mm
• Fitting Method: Hinge mechanism — no bolts or adhesive required
• Units Per Pack: 1 fitting (fits both tube ends at corner)
• Compatible With: 50 x 25mm rectangular slotted tube
• Finish Options: Brushed Satin | Mirror Polish
• Grade Options: 304 Stainless Steel | 316 Marine Grade Stainless Steel
• Material: Stainless Steel
• Category: Components & Fittings – Slotted Fittings

Which Grade Should I Choose?

Grade 304 is strong and reliable, suited to internal applications and external use in non-coastal, non-corrosive environments — ideal for inland areas such as Johannesburg, Pretoria, and most non-coastal suburbs.

Grade 316 (Marine Grade) offers superior corrosion resistance and is the essential choice for coastal properties, poolside installations, and any environment exposed to salt air, moisture, or chemicals. If you are in Cape Town, the Winelands, Durban, or any coastal area, Grade 316 is strongly recommended.

Installation Note

Always match your fitting grade and finish to your slotted tubing for a consistent, professional result. When fitting against glass panels, use neutral-cure silicone or clear rubber gaskets — avoid acetoxy (acid-cure) silicone as it can stain stainless steel.
