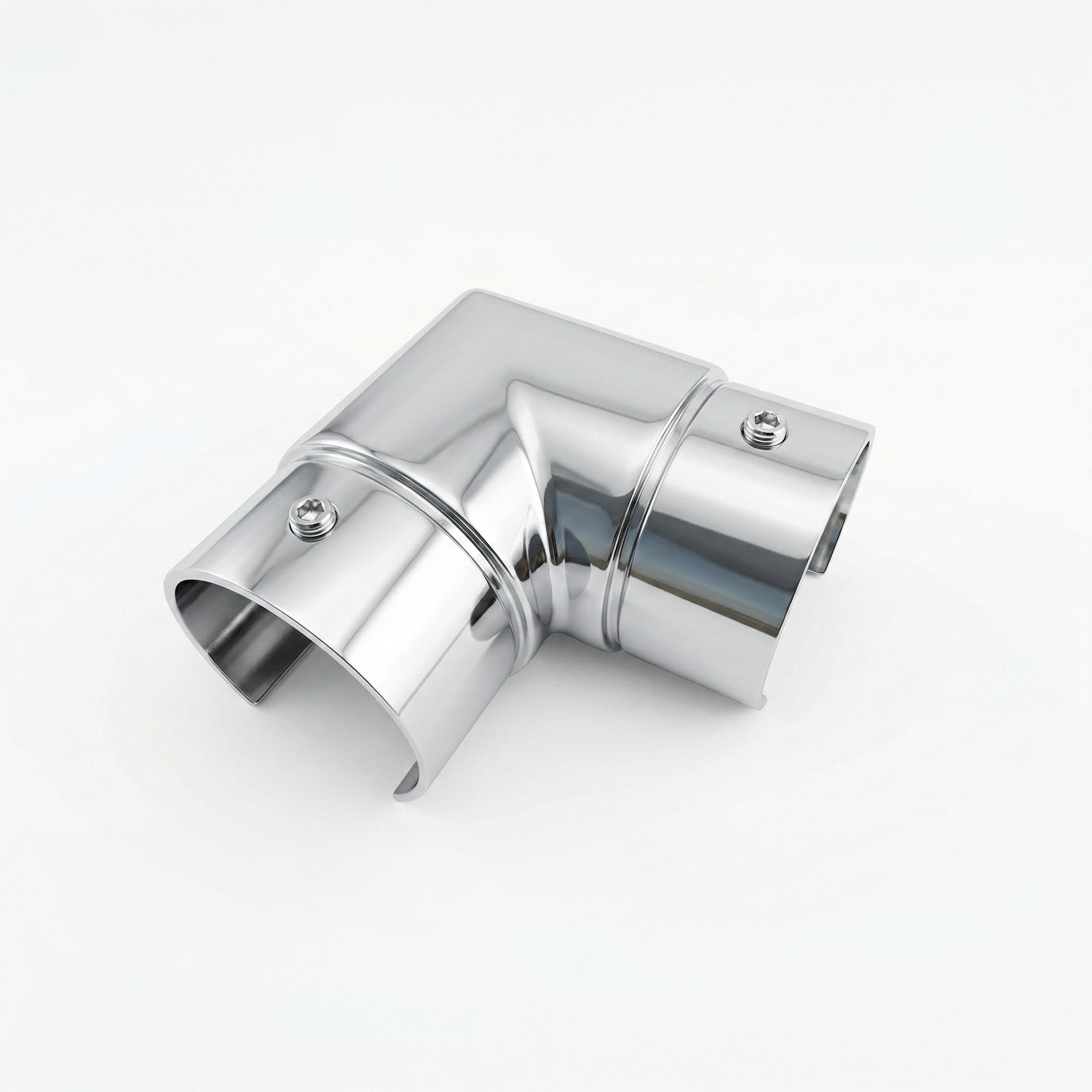

Bend – 90deg fixed bend – Slotted Round – 50.8mm

The 50.8mm Round Slotted 90° Fixed Bend is the purpose-made corner fitting for 50.8mm round slotted top rail systems. When your slotted glass rail reaches a 90° corner — such as the turning point on a deck perimeter or balcony edge — this fitting creates a clean, seamless transition between the two tube runs without any bolts, screws, or adhesive required. It simply slides onto the open ends of both tubes, locking the corner in place.

One fitting handles both tube ends simultaneously, so there are no visible joints or misalignments at the corner. The glass slot terminates neatly at the fitting, creating a defined end point for each glass panel run on either side of the corner.

As with all slotted fittings, this bend is designed to be used in conjunction with neutral-cure silicone or clear rubber gaskets where glass panels are present — ensuring a secure, rattle-free installation throughout.

Specifications

• Type: 90° Fixed Bend
• Profile: Round Slotted
• Tube Diameter: 50.8mm
• Fitting Method: Slide-on — no bolts or adhesive required
• Units Per Pack: 1 fitting (fits both tube ends at corner)
• Compatible With: 50.8mm round slotted tube
• Finish Options: Brushed Satin | Mirror Polish
• Grade Options: 304 Stainless Steel | 316 Marine Grade Stainless Steel
• Material: Stainless Steel
• Category: Components & Fittings – Slotted Fittings

Which Grade Should I Choose?

Grade 304 is strong and reliable, suited to internal applications and external use in non-coastal, non-corrosive environments — ideal for inland areas such as Johannesburg, Pretoria, and most non-coastal suburbs.

Grade 316 (Marine Grade) offers superior corrosion resistance and is the essential choice for coastal properties, poolside installations, and any environment exposed to salt air, moisture, or chemicals. If you are in Cape Town, the Winelands, Durban, or any coastal area, Grade 316 is strongly recommended.

Installation Note

Always match your fitting grade and finish to your slotted tubing for a consistent, professional result. When fitting against glass panels, use neutral-cure silicone or clear rubber gaskets — avoid acetoxy (acid-cure) silicone as it can stain stainless steel.
