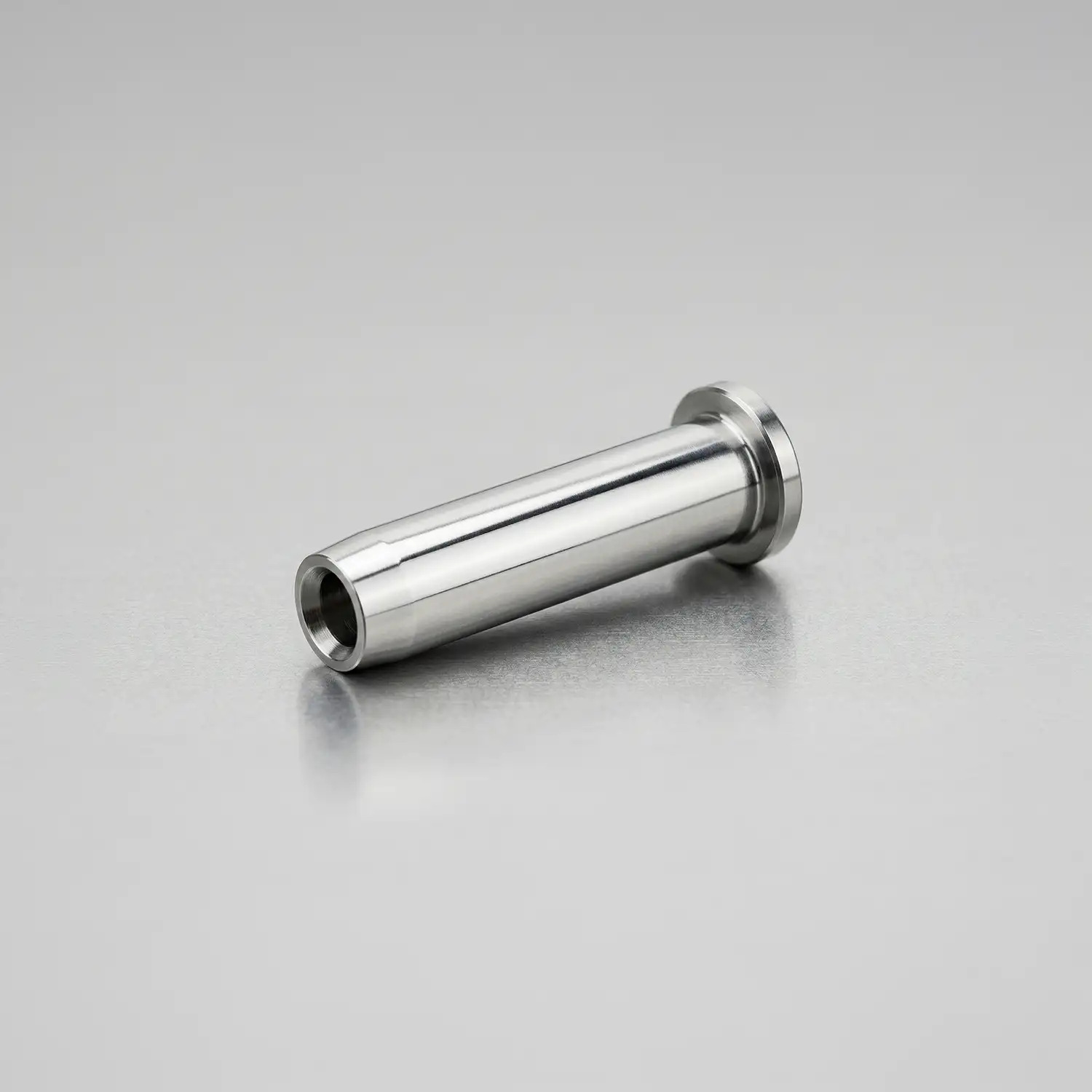

Swage Stopper

The Swage Stopper is crimped permanently onto the end of a 4mm stainless steel cable to prevent the cable from pulling back through the hole in the termination post. Once swaged onto the cable, it creates a fixed end stop — the cable cannot move back through the post regardless of the tension applied from the other end of the run.

In a cable balustrade system, one end of each cable is fixed with a stopper while the other end is tensioned and adjusted via a tensioner fitting. The stopper end is the anchor — it takes the full tension load of the cable run and transfers it into the post at the fixed end. A correctly swaged stopper is a permanent, fail-safe termination that will not loosen or work free over the life of the installation.

Swaging requires a swage tool or crimping tool. If you do not have access to a swage tool, contact our team for guidance on alternative termination options suitable for your installation.

Manufactured in Grade 316 Marine Grade stainless steel.

Specifications

• Type: Swage Stopper
• Cable Compatibility: 4mm stainless steel cable
• Fitting Method: Swage (crimp) — permanently fixed to cable end
• Function: Prevents cable pull-through at fixed termination post
• Grade: 316 Marine Grade Stainless Steel
• Material: Stainless Steel
• Category: Cables & Fittings – Tensioners

Not Sure What You Need?

Submit a free DIY Guidance request and one of our experts will confirm the correct quantity and configuration for your cable run before you order.
