Ready Made Stanchion – Square – Tubing – Weld – 15.88mm Infills – 40 x 40mm

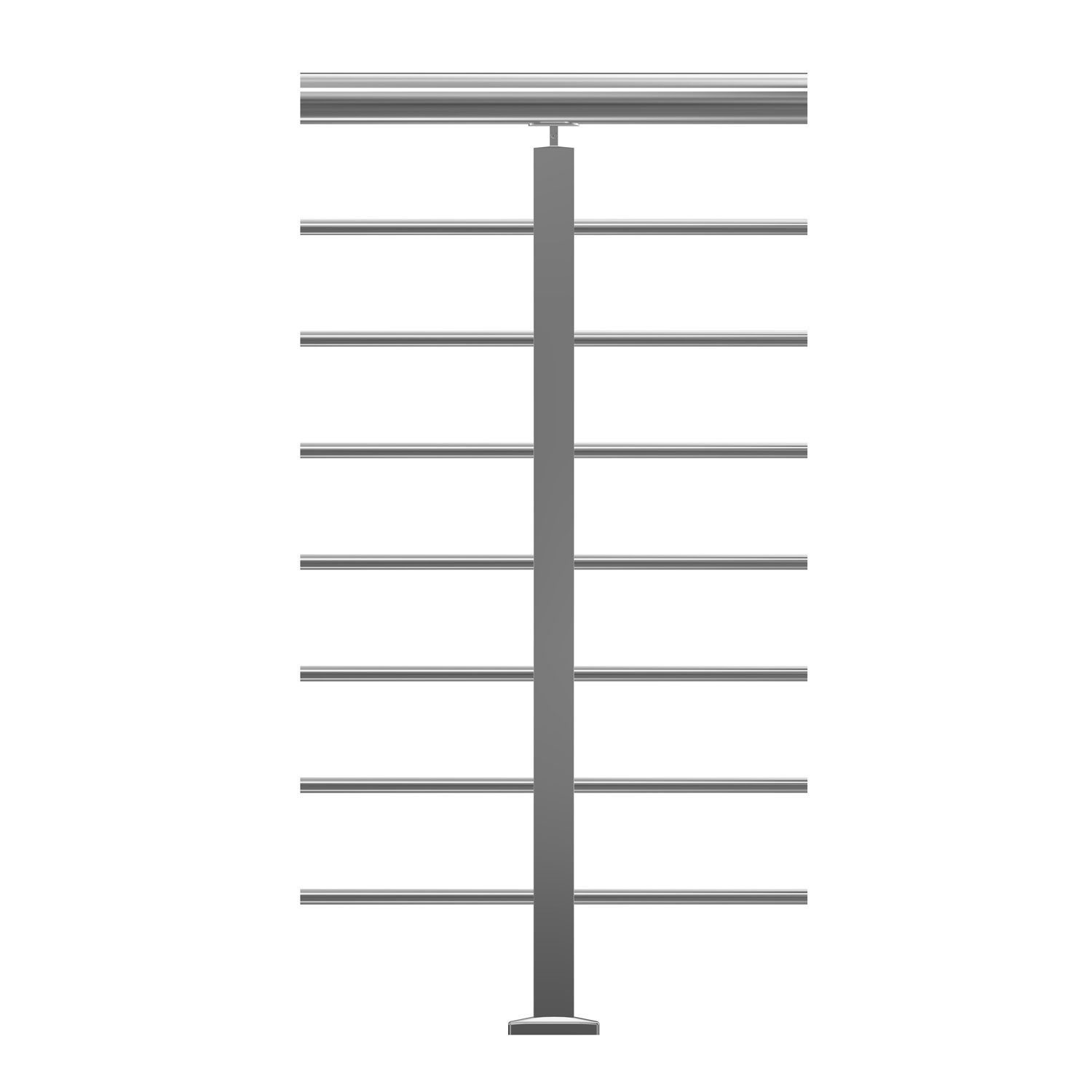

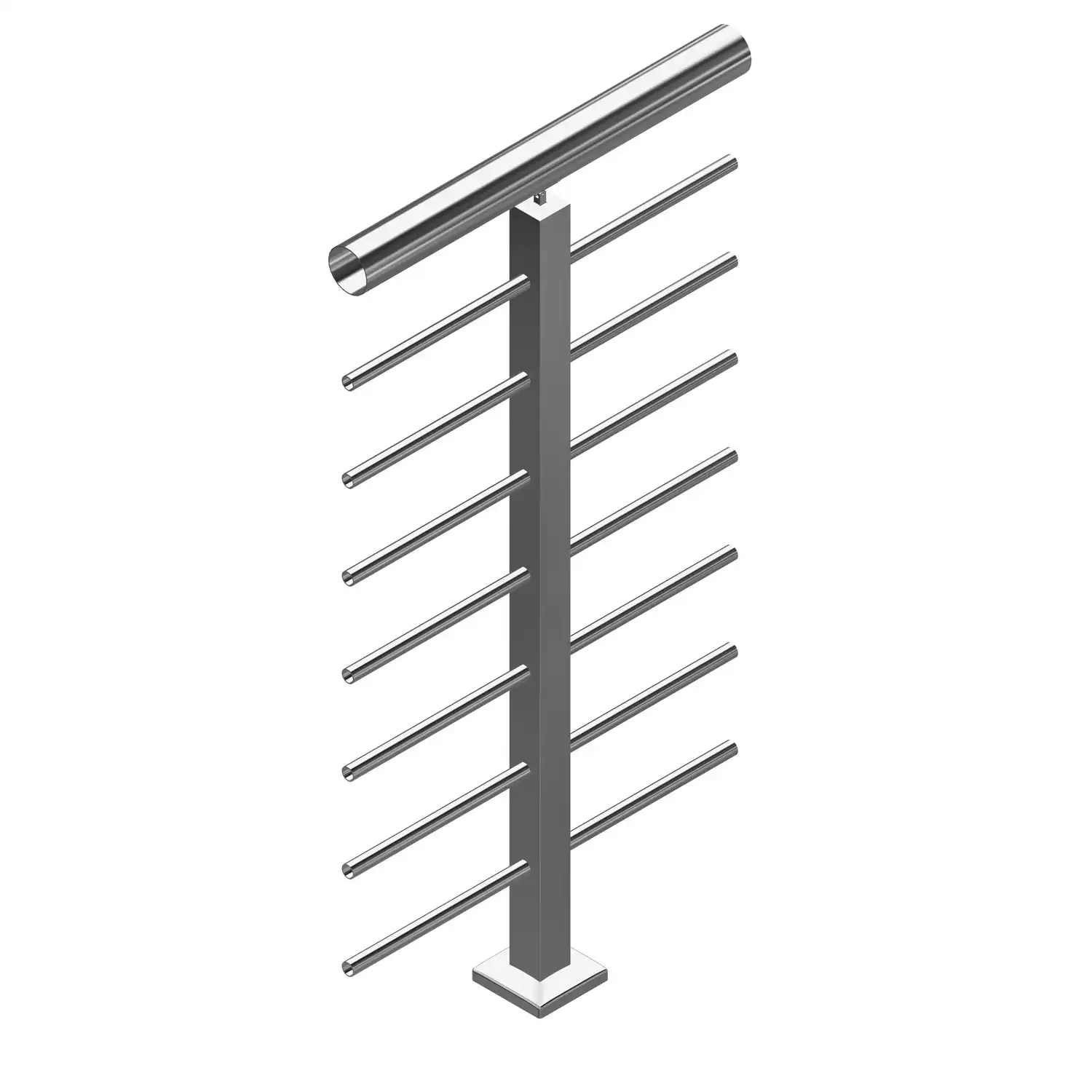

The 40 x 40mm Square Pipe Infill Weld Stanchion (15.88mm) is pre-drilled to accept the slightly larger 15.88mm round infill tubing, producing a bolder, more substantial infill pattern within the square post frame. The 15.88mm infill diameter pairs particularly well with the 40 x 40mm post, creating a proportionally balanced composition where post and infill feel visually matched rather than mismatched in scale.

This combination is a strong choice for outdoor applications such as pool surrounds, entertainment decks, and exposed balconies where both structural robustness and visual presence matter. Once welded in position, the 15.88mm infill tubes form a fully rigid, permanently fixed assembly that requires no ongoing attention to mechanical connections or fittings.

The post bolts down to the ground via the included flange — no floor welding required. Each pack includes the base plate, cover plate, and saddle bracket. Infill tubing, top rail, fixing hardware, and end caps are all sold separately.

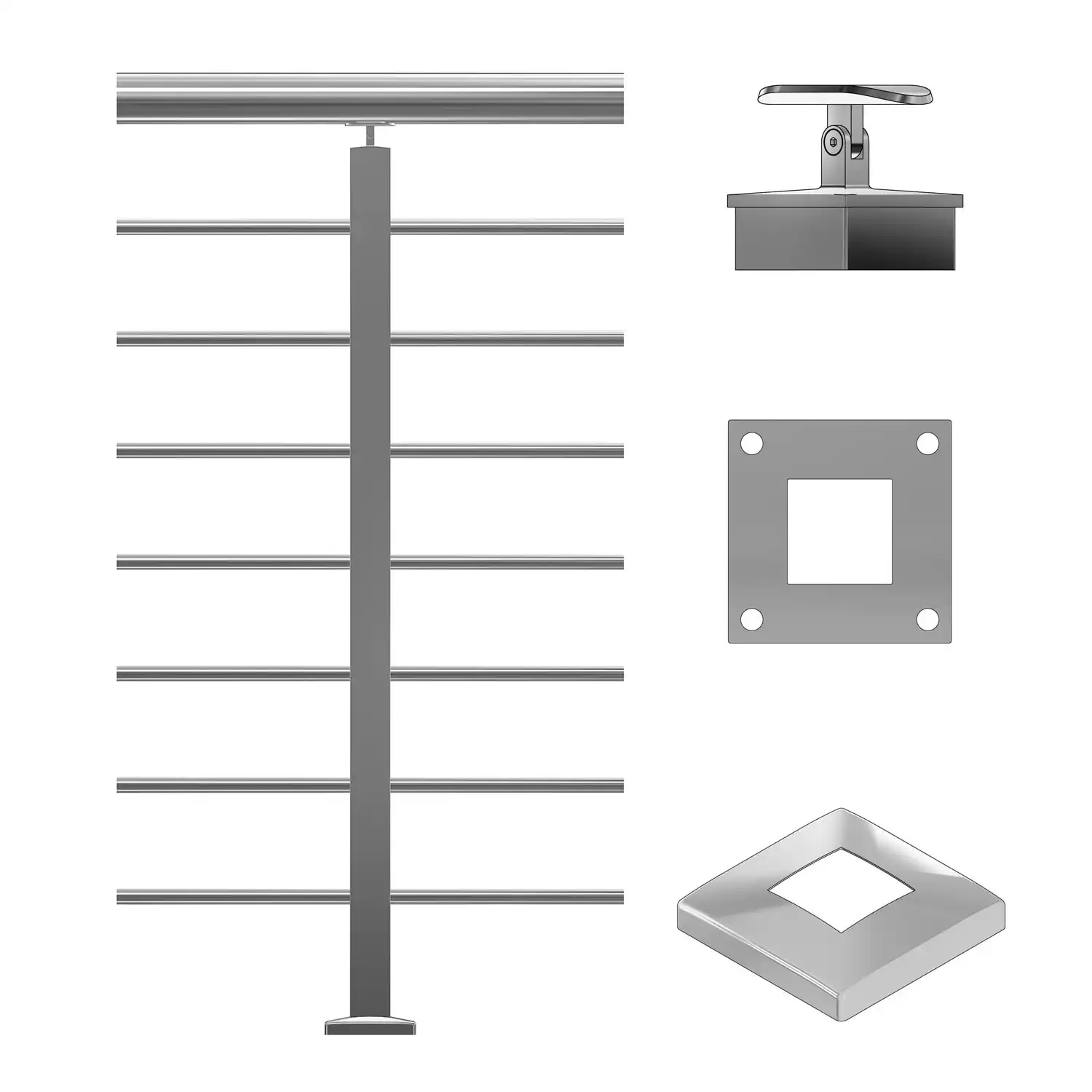

What’s Included

• 40 x 40mm square stanchion post — 900mm height — pre-drilled for 15.88mm infill tubing
• Saddle bracket for top rail
• Flange / base plate with pre-drilled fixing holes
• Cover plate for base plate

Sold Separately

• 15.88mm round infill tubing
• Top rail tubing
• End caps
• Screws, bolts, and pop rivets

Specifications

• Profile: Square
• Dimensions: 40 x 40mm
• Height: 900mm
• Pre-Drilled For: 15.88mm round infill tubing
• Installation Method: Infill tubes welded into post by installer — post is bolt-down, no welding to ground
• Finish Options: Brushed Satin | Mirror Polish
• Grade Options: 304 Stainless Steel | 316 Marine Grade Stainless Steel
• Material: Stainless Steel
• Category: Pre-Drilled Posts – Ready Made Stanchions

Which Grade Should I Choose?

Grade 304 is strong and reliable, suited to internal applications and external use in non-coastal, non-corrosive environments — ideal for inland areas such as Johannesburg, Pretoria, and most non-coastal suburbs.

Grade 316 (Marine Grade) offers superior corrosion resistance and is the essential choice for coastal properties, poolside installations, and any environment exposed to salt air, moisture, or chemicals. If you are in Cape Town, the Winelands, Durban, or any coastal area, Grade 316 is strongly recommended.

Not Sure What You Need?

Submit a free DIY Guidance request and one of our experts will review your project and confirm the exact products and quantities to order before you spend a single rand.
