Not every balustrade project fits a standard post. Staircases that rake at unusual angles, balconies with non-standard heights, corner configurations that require left- or right-hand orientation, or simply a design that demands something beyond the ready-made range — this is where our custom stanchion service comes in.

With over 15 years of experience manufacturing and supplying stainless steel balustrade components, our Cape Town workshop can produce stanchions to virtually any specification. Whether you are a DIY homeowner with a precise vision or a contractor with a complex set of drawings, we manufacture each post to your exact requirements and deliver it ready to install.

All custom stanchions are bolt-down to the ground — no on-site welding to the floor or structure is required.

What Can Be Customised?

Post Profile

Choose from four post profiles to match your project design and any existing tubing or fittings:

  • Round 38.1mm
  • Round 50.8mm
  • Square 40 x 40mm
  • Square 50 x 50mm

Post Height

Custom stanchions are manufactured to any height you require — simply specify your required post height when submitting your enquiry.

Post Configuration

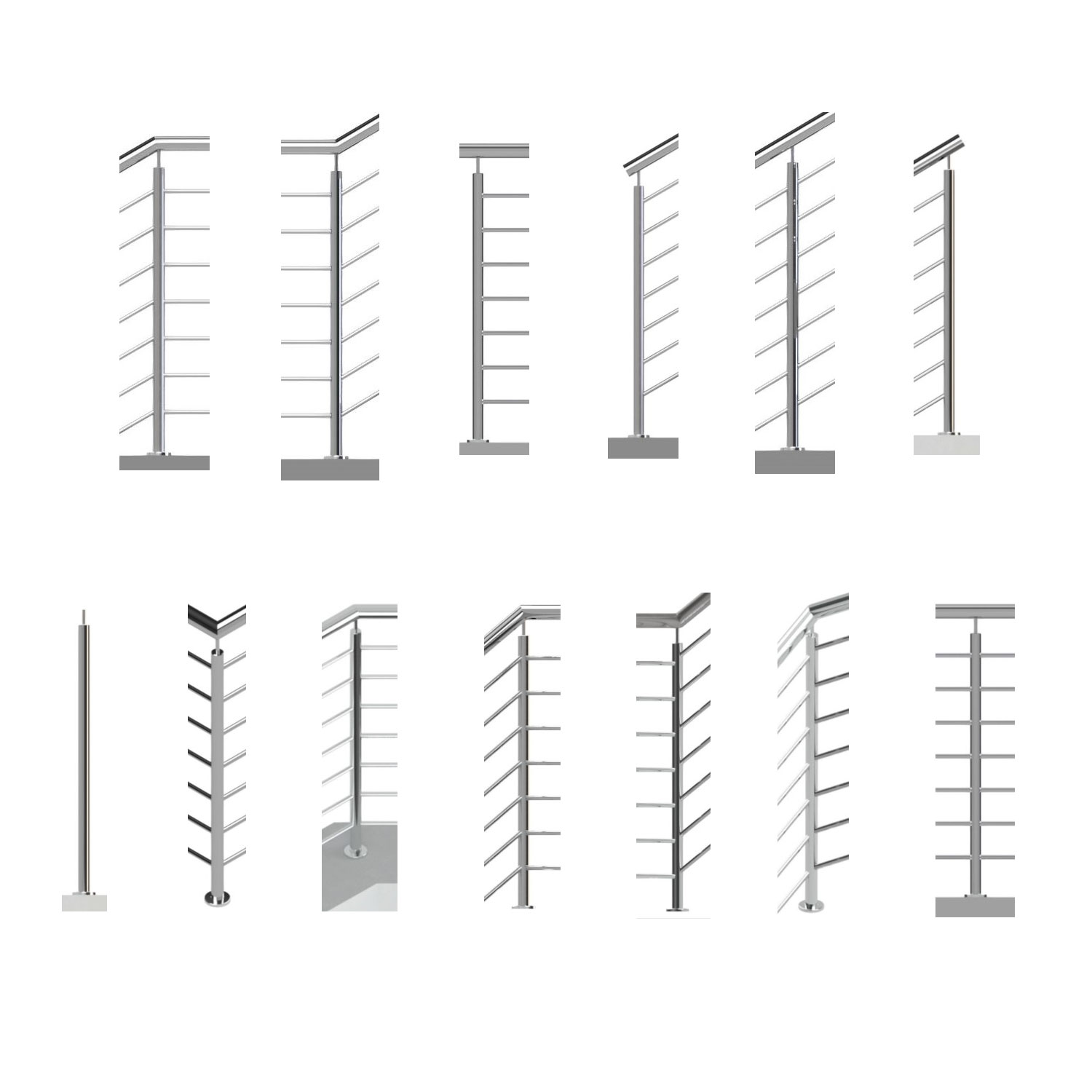

We manufacture 13 post configurations to suit every position in your balustrade run:

  • Corner Post — Straight to Degree Up: For corner positions where the balustrade transitions from a flat run upward into a raking section. Available in Left Hand and Right Hand.
  • Corner Post — Degree to Degree Up: For corner positions between two raking sections. Available in Left Hand and Right Hand.
  • Corner Post — Degree Up to Straight: For corner positions where a raking section transitions back to a flat run. Available in Left Hand and Right Hand.
  • End Post — Up at Degree: For end/termination positions where the balustrade runs at a raking angle, post angled upward.
  • End Post — Down at Degree: For end/termination positions where the balustrade runs at a raking angle, post angled downward.
  • Centre Post — Straight to Degree Up: For mid-run positions transitioning from flat to raking. Standard orientation.
  • Centre Post — Straight to Degree Down: For mid-run positions transitioning from flat to raking downward. Standard orientation.
  • Centre Post — Through at Degree: For mid-run positions on a continuous raking section, post passes straight through at the required angle.
  • Open Corner Post — 135 Degree: For open corner positions at 135°, suited to angled deck perimeters and wide corner turns.
  • Corner Post — Straight: For standard 90° corner positions on a flat run.
  • End Post — Straight: For standard termination positions on a flat run.
  • Centre Post — Straight Through: For standard mid-run positions on a flat, level balustrade.
  • Plain Post: A plain post with no pre-drilled holes — for fully custom or welded infill configurations.

Infill Type

Posts are pre-drilled to suit your chosen infill system:

  • Cable infill
  • Glass clamp infill (rivnuts included)
  • Pipe holder infill (no weld)
  • Pipe infill (weld)

Mounting Options

Choose from a full range of fixing and mounting methods to suit your substrate and installation requirements:

  • Core drill
  • Top mount
  • Side mount
  • Flange (bolt-down)
  • Pin fix
  • Saddle fixed
  • Saddle adjustable

Pin & Cover Plate Options

  • No pin
  • Weld-on pin
  • Knock-in pin
  • Cover plate flat
  • Cover plate domed

Wall Thickness

Choose the wall thickness of your stainless steel post to suit your structural requirements:

  • 1.2mm — standard wall thickness, suitable for most residential applications
  • 1.5mm — heavier wall thickness, recommended for coastal environments, pool surrounds, and applications requiring greater structural rigidity

Grade & Finish

Pricing & Lead Time

Custom stanchions are priced per project once your full specification has been confirmed. To receive a quote, simply submit your requirements using the Custom Build enquiry form and our team will contact you directly to discuss your project and confirm pricing and lead time.

As these posts are manufactured to order, lead times are longer than our ready-made range — our team will advise you on expected turnaround at the time of your enquiry.

How to Order

Ordering custom stanchions is straightforward:

  • Step 1 — Submit your enquiry: Use the Custom Build form on this page, or contact us directly by phone or email. Include as much detail as possible — post profile, height, configuration type, infill type, quantity, mounting method, and your preferred grade and finish.
  • Step 2 — We review and quote: Our team will review your requirements, ask any clarifying questions, and provide a written quote with lead time.
  • Step 3 — Approve and confirm: Once you are happy with the quote, you approve and confirm your order. Production begins once payment or deposit is received.
  • Step 4 — Manufactured and delivered: Your custom stanchions are manufactured in our Cape Town workshop and delivered safely to your door anywhere in South Africa.

Not Sure Which Configuration You Need?

Submit a free DIY Guidance request alongside your custom stanchion enquiry and our team will review your project drawings, measurements, or photos and advise on the correct post configurations, quantities, and specifications before you commit to an order.

Specifications Summary

  • Post Profiles: Round 38.1mm | Round 50.8mm | Square 40 x 40mm | Square 50 x 50mm
  • Height: Custom — any height on request
  • Configurations: 13 post types available (see above)
  • Infill Options: Cable | Glass Clamp | Pipe Holder (no weld) | Pipe Infill (weld)
  • Mounting Options: Core drill | Top mount | Side mount | Flange | Pin fix | Saddle fixed | Saddle adjustable
  • Wall Thickness: 1.2mm | 1.5mm
  • Finish Options: Brushed Satin | Mirror Polish
  • Grade Options: 304 Stainless Steel | 316 Marine Grade Stainless Steel
  • Pricing: Quoted per project
  • Lead Time: Confirmed at time of enquiry
  • Category: Pre-Drilled Posts – Custom Made Stanchions
Material

Stainless Steel
