Cable (Per Meter) – 1×19 Construction – 4mm

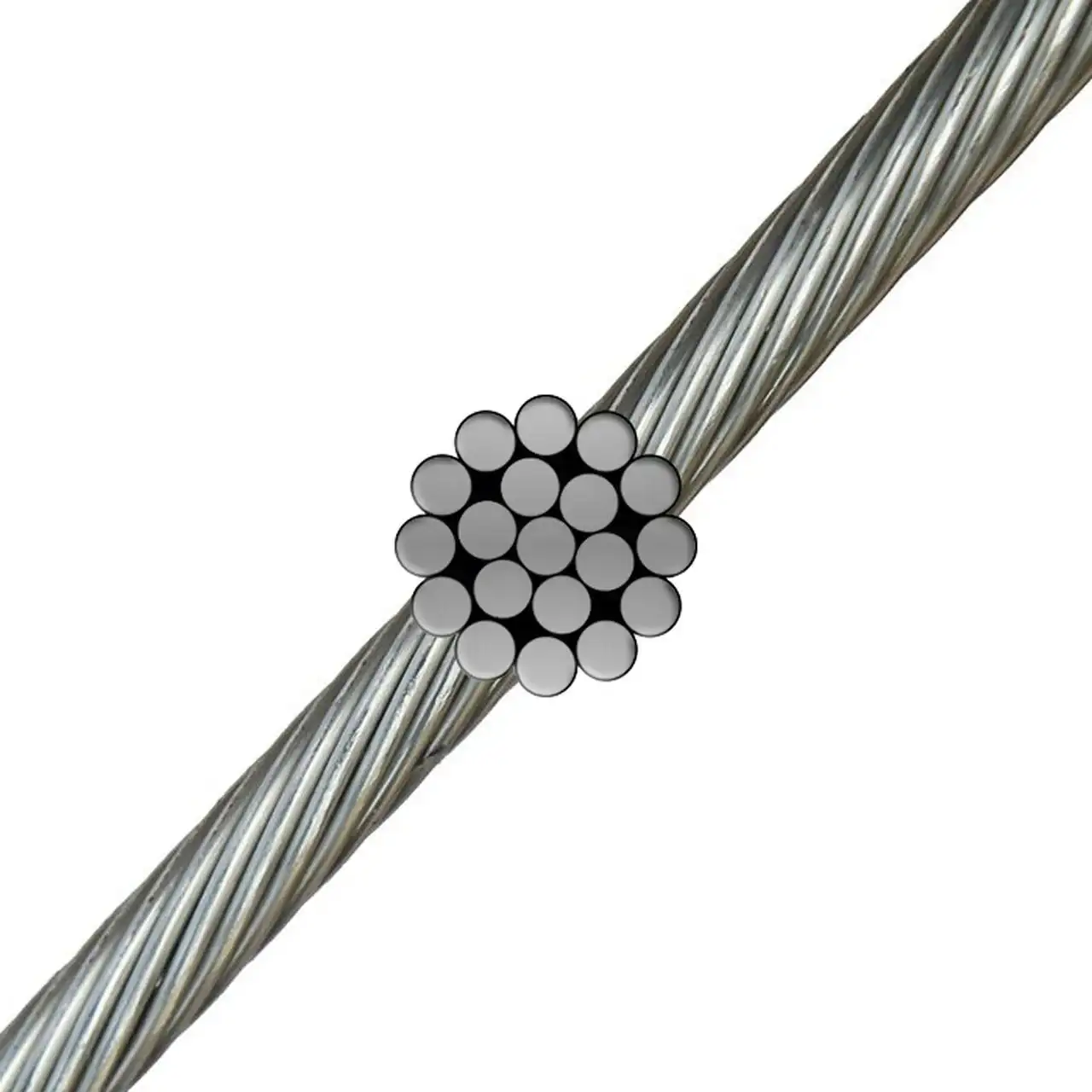

The 4mm 1×19 Stainless Steel Cable is the infill cable used in stainless steel cable balustrade systems, sold per metre so you order exactly the length your project requires. The 1×19 construction means the cable is made from 19 individual strands compressed into a single, rigid core — producing a cable with very little flexibility that holds a straight, taut line between posts with minimal sag or movement.

This rigidity is what makes 1×19 construction the correct choice for horizontal cable balustrade runs. A more flexible cable construction would allow the cable to sag and bow between posts under its own weight and wind load — visually unsatisfactory and structurally insufficient. The 1×19 cable stays straight and taut between fixing points, maintaining the clean, parallel lines that define a well-executed cable balustrade installation.

When calculating your required cable length, measure the full run from tensioner to stopper at each cable level, and add a minimum of 150mm per end for the swage fitting and tensioner thread engagement. If in doubt, our team can assist with a cut list — simply submit a free DIY Guidance request with your measurements and post spacing.

Manufactured in Grade 316 Marine Grade stainless steel — the correct specification for all outdoor cable balustrade applications, including coastal environments, poolside installations, and any area exposed to salt air or moisture.

Specifications

• Type: Stainless Steel Cable
• Diameter: 4mm
• Construction: 1×19 — 19 individual strands, rigid low-flex construction
• Sold: Per metre — specify required length at checkout
• Application: Horizontal cable balustrade infill runs
• Grade: 316 Marine Grade Stainless Steel
• Material: Stainless Steel
• Category: Cables & Fittings – Cables

Not Sure What You Need?

Submit a free DIY Guidance request and one of our experts will help you calculate the exact cable lengths needed for your project before you order.
